WU455

A HTM71 compliant wall unit, constructed from 18mm MFC with 1/2mm ABS edging. Fitted with universal HTM71 liners allowing the cabinet to use half-size 100mm and 200mm deep HTM71 modular trays.

  • 455mm (W) x 350mm (D) x 700mm (H)
  • 18mm MFC construction
  • Aximat 100 full overlay mounting exposed axle 250° hinges
  • 192mm steel D pull handle
  • Adjustable plastic plinth feet
  • Syno 3000 cam lock with keys





CONTACT US



SKU: WU455 Categories: ,

DESCRIPTION

The Medspace 455 and 655 wide HTM71 cabinetry are designed to comply with the NHS HTM 71 Health Technical Memorandum - Materials Management Modular Storage.

At the core of the HTM71 system is the ISO module storage insert (AKA the tray) measuring 600 x 400 mm. Each cabinet is fitted with our universal HTM71 liners that allow the HTM71 trays to be fitted and arrested at an angle. Find out more about our trays and plastics here.

These units can be fitted with a sloping top to ensure correct manual handling and infection control compliance.

DOOR OPTIONS

The WU455 wall unit ‘open fronted’ with no doors as standard. We offer the following door options:

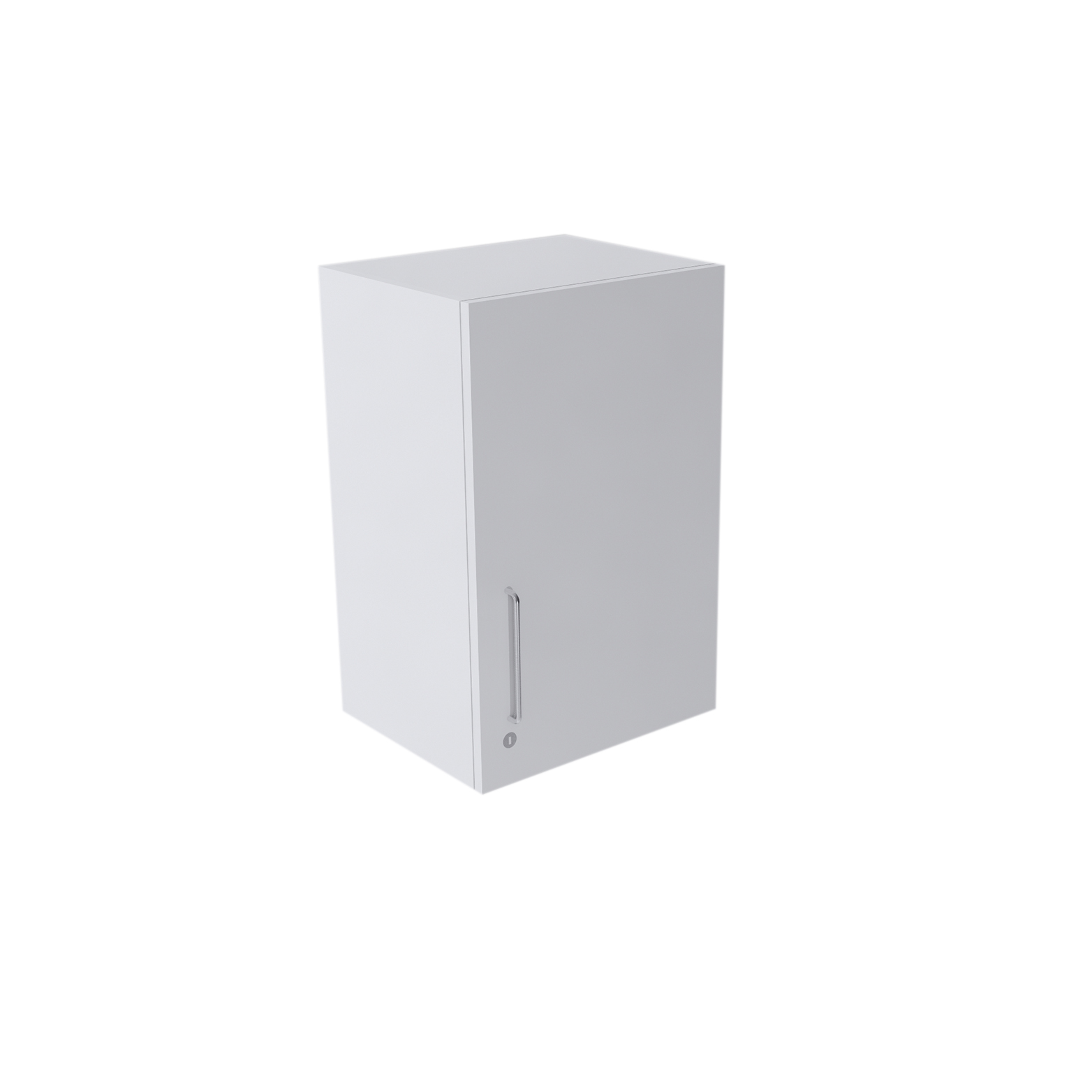

  • Standard solid (-D) - The most popular door option. 18mm MFC ABS edged lockable door fitted with 270° hinges. With 200mm steel D-handle and cam lock.
  • Laminate solid (-L) - 18mm MDF laminate faced ABS edged lockable door fitted with 270° hinges. With 200mm steel D-handle and cam lock. Many colours available upon request.
  • Plastic (-PCD) - Lockable transparent acrylic door with 270° hinges. With 200mm steel D-handle and cam lock.

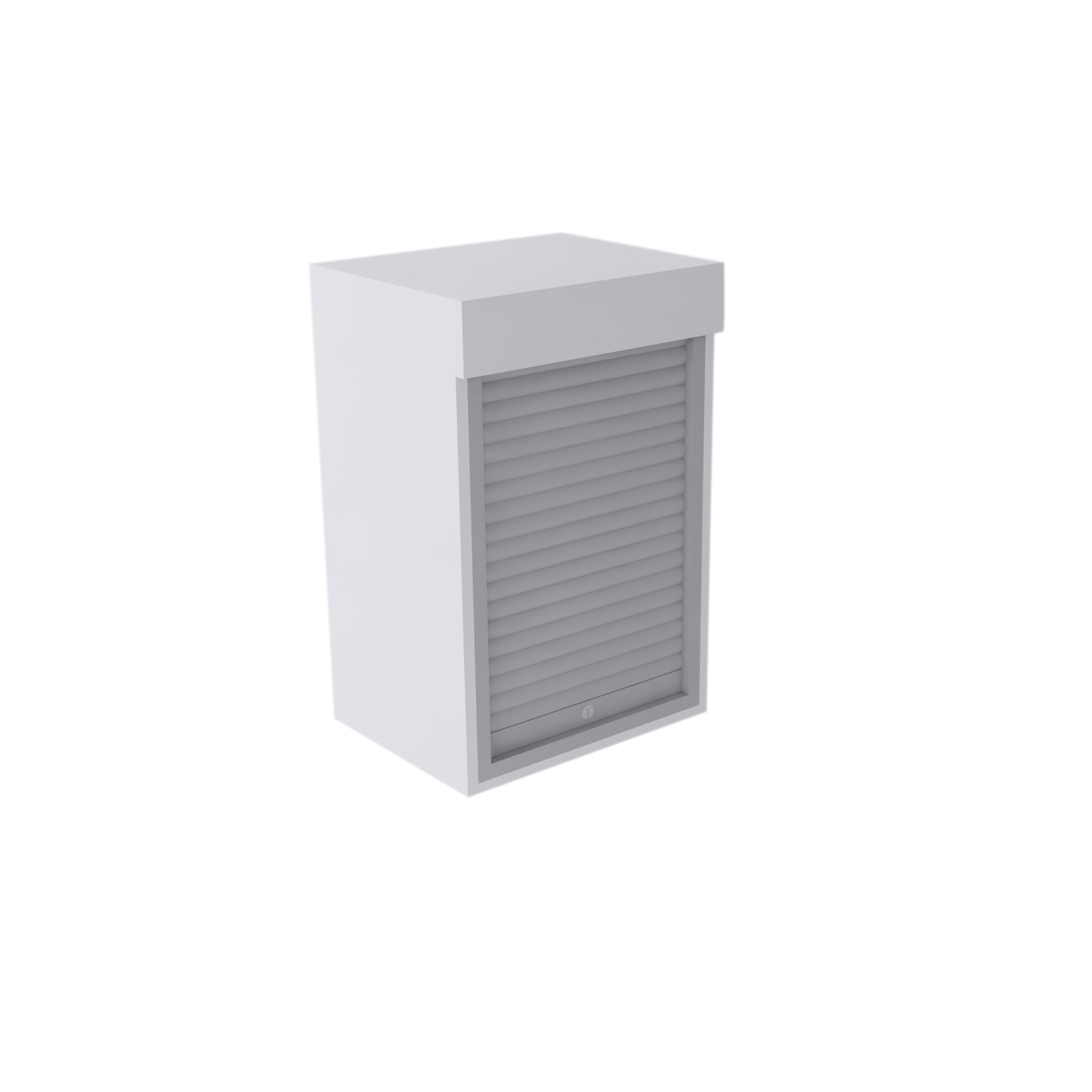

  • Roller shutter (-RS) - A lockable, molded channel, tambour door. Easy operation, smooth and safe.

StandarD COLOURS



Light Grey Egger® U708 (ST9) MFC with Hranipex® HU15510 Blue Pearl edging



Light Grey Egger® U708 (ST9) MFC with Hranipex® HU17035 Grey Pearl XG



White Egger® W980 (ST2) MFC with Hranipex® HU10980 White Pearl edging

These are our standard materials and colours included in the cost of the cabinet.

We can also manufacture the cabinets in any colour or material that is required from any  supplier such as Egger, Formica, Abet, Polyrey, Kronospan and many more. Please get in touch with your requirements.
