CMED-300B

CMED-300B

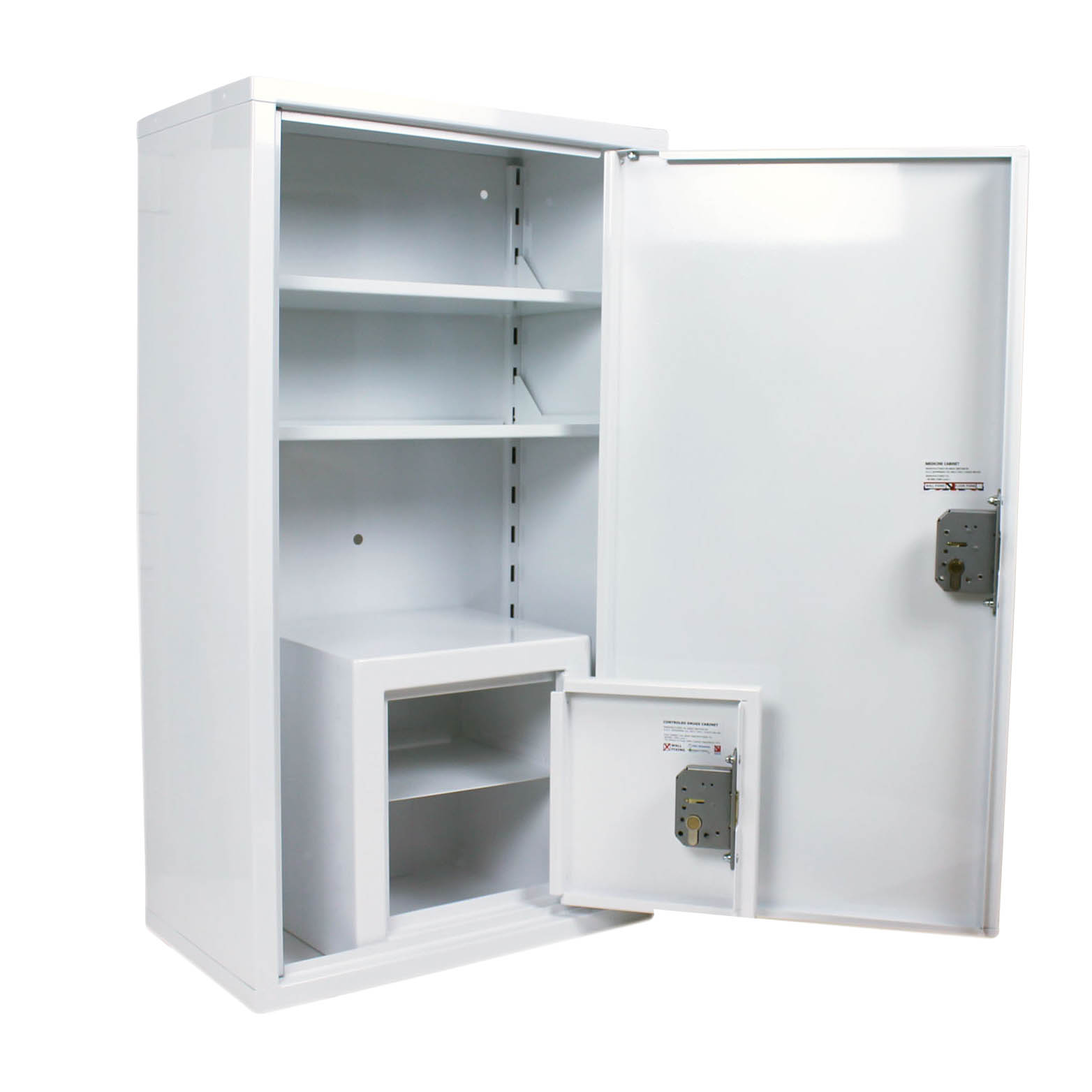

Combined medicine cabinet with inner Controlled Drugs Cabinet for the storage of drugs. BS2881:1989, “Misuse of Drugs (Safe Custody) Regulations and BS3621 compliant.

OPTION BMED-300 medicine cabinet fitted with internal CDC-002 cabinet – 335mm (W) x 270mm (D) x 300mm (H)

  • 600mm (W) x 300mm (D) x 900mm (H)
  • Wall fixing with 4 x 10mm x 75mm long sleeve anchors (supplied)
  • 2 height adjustable internal shelves
  • Single point locking, one lock supplied with three keys
  • RAL 9003 (White) textured



CONTACT US



DESCRIPTION

Cabinet conforms to BS2881: 1989 (Security Level One) and the “Misuse of Drugs (Safe Custody) Regulations. This which is the specification for Cupboards for the Storage of Medicines in Health Care Premises. The lock conforms to BS3621 anti-pick & drill, key retaining six pin cylinder lock (supplied with 3 keys).

The design of our medicine cabinets also sets us apart from our competitors. We use piano hinges to hold the doors in place. As a result, we increase the access size into the cabinet. Most of all this enables you to make better use of the internal space. The piano hinge is also stronger than other hinging methods, adding further to the security level offered by our cabinets.

FEATURES

  • 2 height adjustable internal shelves
  • BS2881:1989 (Security Level One) Specification for Cupboards for the Storage of Medicines in Health Care Premises and the “Misuse of Drugs (Safe Custody) Regulations.
  • BS3621 anti-pick & drill, key retaining five pin cylinder lock (supplied with 3 keys)
  • Constructed from 0.9mm thick cold reduced mild steel sheet
  • 3mm thick anchor plates at all fixing points
  • Fully welded construction
  • Anti-Jimmy folded return down full length of hinge side of door
  • Thick mild steel continuous hinge. Complete with 25mm joints and 4.5mm diameter hinge pin. Additionally, to prevent removal of the door the hinge pin is welded
Medicine cabinet - MED-300
Combined Medicine and Controlled Drugs Cabinet - CMED-300B

StandarD COLOURS


RAL 9003 (White) textured

MEDICINE CABINET SIZE

Width (mm) Depth (mm) Height (mm) Volume (l) Weight (kg)
600 300 900 162 40

Inner CD CABINET SIZE

Width (mm) Depth (mm) Height (mm) Volume (l) Weight (kg)
335 270 300 27 12
